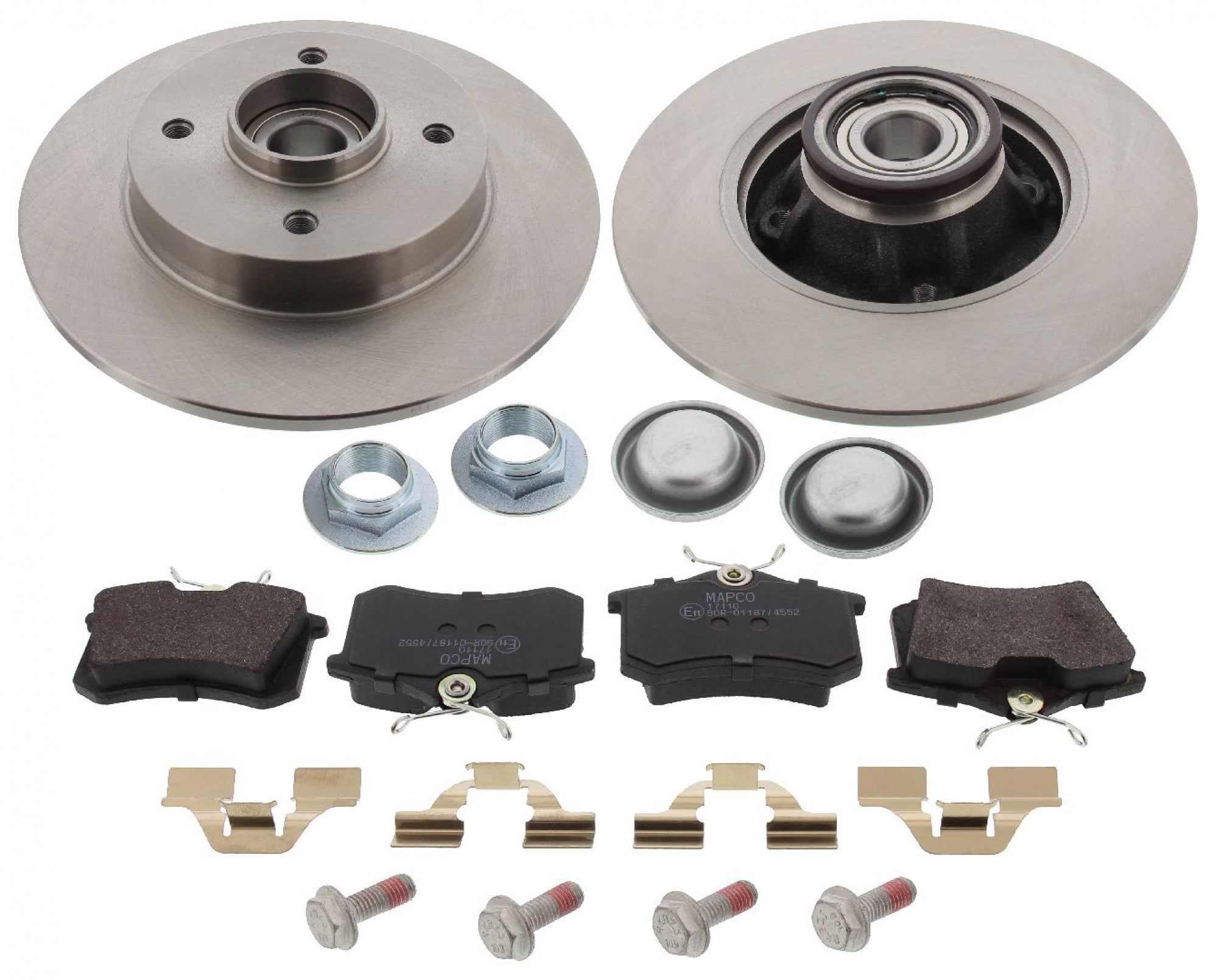

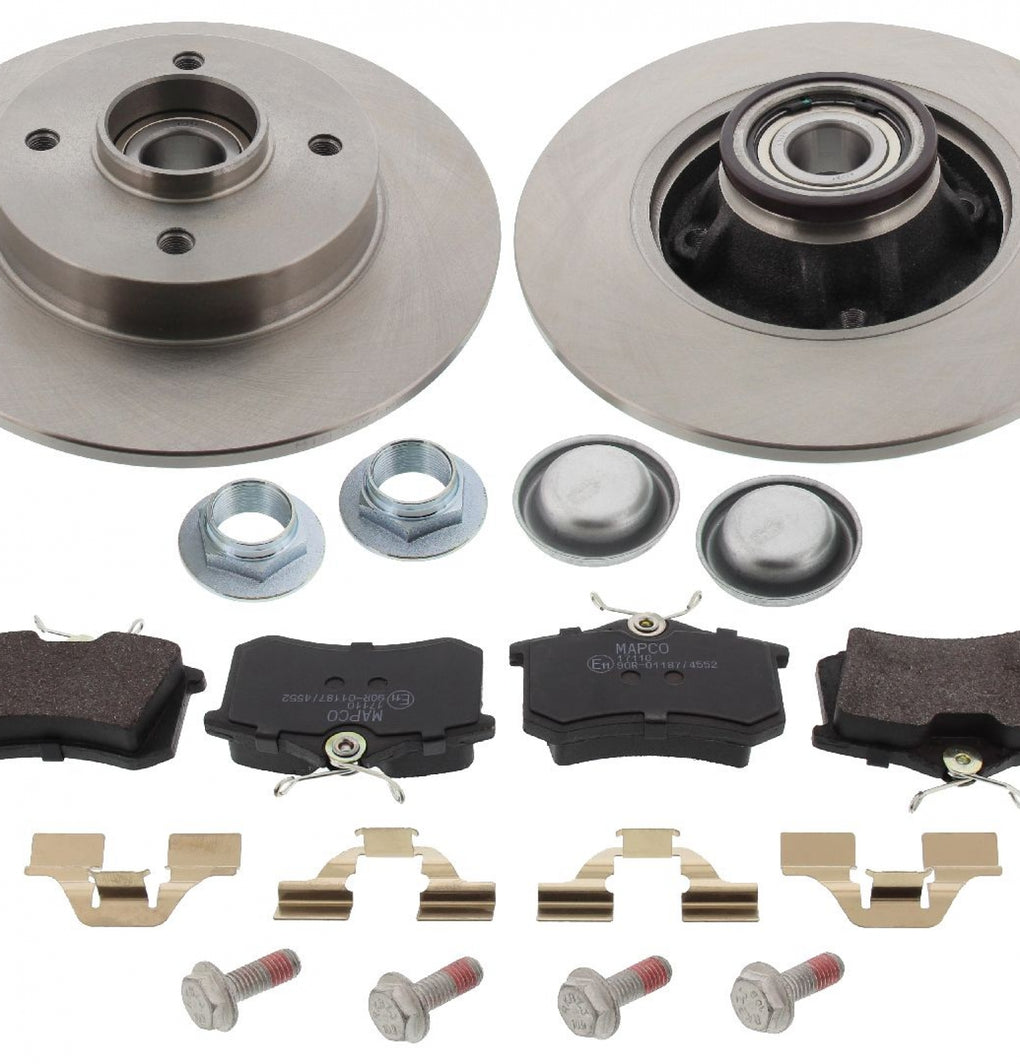

Rear Brake Discs Pads Kit For CITROEN C4, DS4, PEUGEOT 308

£107.00

Brand: Mapco
Availability: 2 In Stock
SKU: 47360
Loading delivery info...
* Applies to DPD Zone 1 only

£107.00

-Description-

Brand New MAPCO Brake Disc Set – High Quality Replacement Parts

-Technical details-

Vehicle Type Year Part Numbers Engine output and capacity Engine
CITROEN C4 I (LC_) 1.6 HDiConstruction year to: 2009/10
CITROEN C4 II (NC_) 1.4 VTi 95 for vehicles without electric parking brake
CITROEN C4 II (NC_) 1.6 HDi 110 for vehicles without electric parking brake
CITROEN C4 II (NC_) 1.6 HDi 90 for vehicles without electric parking brake
CITROEN C4 II (NC_) 1.6 VTi 120 for vehicles without electric parking brake
CITROEN C4 II (NC_) 1.6 VTi 120 LPG for vehicles without electric parking brake
CITROEN C4 II (NC_) 2.0 HDi / BlueHDi 150 for vehicles without electric parking brake
CITROEN DS4 (NX_) 1.6 HDi 110 for vehicles without electric parking brake
CITROEN DS4 (NX_) 1.6 THP 155 for vehicles without electric parking brake
CITROEN DS4 (NX_) 1.6 VTi 120 for vehicles without electric parking brake
PEUGEOT 308 CC (4B_) 1.6 16V
PEUGEOT 308 CC (4B_) 1.6 16V
PEUGEOT 308 CC (4B_) 1.6 16VConstruction year from: 2009/09
PEUGEOT 308 CC (4B_) 1.6 16V
PEUGEOT 308 CC (4B_) 1.6 HDi
PEUGEOT 308 CC (4B_) 2.0 HDi
PEUGEOT 308 CC (4B_) 2.0 HDi
PEUGEOT 308 CC (4B_) 2.0 HDi
PEUGEOT 308 I (4A_, 4C_) 1.4 16V
PEUGEOT 308 I (4A_, 4C_) 1.4 16V
PEUGEOT 308 I (4A_, 4C_) 1.6 16V
PEUGEOT 308 I (4A_, 4C_) 1.6 16V
PEUGEOT 308 I (4A_, 4C_) 1.6 16V
PEUGEOT 308 I (4A_, 4C_) 1.6 16V
PEUGEOT 308 I (4A_, 4C_) 1.6 BioFlex
PEUGEOT 308 I (4A_, 4C_) 1.6 HDi
PEUGEOT 308 I (4A_, 4C_) 1.6 HDi
PEUGEOT 308 I (4A_, 4C_) 1.6 HDi
PEUGEOT 308 I (4A_, 4C_) 1.6 HDi
PEUGEOT 308 I (4A_, 4C_) 1.6 THP 16V
PEUGEOT 308 I (4A_, 4C_) 2.0 HDi
PEUGEOT 308 I (4A_, 4C_) 2.0 HDi
PEUGEOT 308 SW I (4E_, 4H_) 1.4 16V
PEUGEOT 308 SW I (4E_, 4H_) 1.6 Bioflex
PEUGEOT 308 SW I (4E_, 4H_) 1.6 HDi
PEUGEOT 308 SW I (4E_, 4H_) 1.6 HDi
PEUGEOT 308 SW I (4E_, 4H_) 1.6 THP 16V
PEUGEOT 308 SW I (4E_, 4H_) 2.0 BioflexConstruction year from: 2008/05
PEUGEOT 308 SW I (4E_, 4H_) 2.0 HDiConstruction year from: 2008/05
PEUGEOT 308 SW I (4E_, 4H_) 2.0 HDiConstruction year from: 2008/05
PEUGEOT 308 SW I (4E_, 4H_) 2.0 HDi
11/2004 - 07/2011
11/2009 -
11/2009 -
11/2009 -
11/2009 - 12/2016
09/2011 -
11/2009 -
04/2011 - 07/2015
04/2011 - 07/2015
04/2011 - 07/2015
06/2009 - 12/2014
06/2009 - 12/2014
06/2009 - 12/2014
06/2009 - 12/2014
06/2009 - 12/2014
04/2009 - 12/2012
04/2009 - 12/2014
06/2009 - 12/2014
09/2007 - 10/2014
12/2009 - 10/2014
09/2007 - 10/2014
09/2007 - 10/2014
03/2008 - 10/2014
09/2007 - 10/2014
04/2008 - 10/2014
09/2007 - 10/2014
09/2007 - 10/2014
11/2009 - 10/2014
12/2009 - 10/2014
10/2009 - 10/2014
09/2007 - 10/2014
07/2010 - 12/2012
12/2009 - 10/2014
03/2009 - 10/2014
11/2009 - 10/2014
12/2009 - 10/2014
10/2009 - 10/2014
01/2008 - 12/2011
09/2007 - 12/2012
09/2007 - 10/2014
06/2009 - 10/2014
4249 65 CITROEN
4249 66 CITROEN
4249 65 PEUGEOT
4249 66 PEUGEOT
4249.65 PEUGEOT
4249.66 PEUGEOT
80KW (109hp) 1560 ccm
70KW (95hp) 1397 ccm
82KW (112hp) 1560 ccm
68KW (92hp) 1560 ccm
88KW (120hp) 1598 ccm
88KW (120hp) 1598 ccm
110KW (150hp) 1997 ccm
82KW (112hp) 1560 ccm
115KW (156hp) 1598 ccm
88KW (120hp) 1598 ccm
110KW (150hp) 1598 ccm
88KW (120hp) 1598 ccm
115KW (156hp) 1598 ccm
103KW (140hp) 1598 ccm
82KW (112hp) 1560 ccm
103KW (140hp) 1997 ccm
100KW (136hp) 1997 ccm
120KW (163hp) 1997 ccm
70KW (95hp) 1397 ccm
72KW (98hp) 1397 ccm
88KW (120hp) 1598 ccm
110KW (150hp) 1598 ccm
128KW (174hp) 1598 ccm
103KW (140hp) 1598 ccm
80KW (109hp) 1587 ccm
66KW (90hp) 1560 ccm
80KW (109hp) 1560 ccm
68KW (92hp) 1560 ccm
82KW (112hp) 1560 ccm
115KW (156hp) 1598 ccm
100KW (136hp) 1997 ccm
103KW (140hp) 1997 ccm
72KW (98hp) 1397 ccm
82KW (112hp) 1587 ccm
68KW (92hp) 1560 ccm
82KW (112hp) 1560 ccm
115KW (156hp) 1598 ccm
103KW (140hp) 1997 ccm
100KW (136hp) 1997 ccm
103KW (140hp) 1997 ccm
120KW (163hp) 1997 ccm
9HZ (DV6TED4)
8FP (EP3C)
9HR (DV6C)
9HP (DV6DTED)
5FS (EP6C)
AHR (DW10FD)
5FV (EP6CDT)
5FX (EP6DT)
EP6
5FT (EP6DT)
RHF (DW10BTED4)
RHR (DW10BTED4)
RHH (DW10CTED4)
EP3
8FR (EP3)
5FW (EP6)
5FY (EP6DTS)
NFU (TU5JP4)
9HV (DV6TED4BU)
9HY (DV6TED4)
8FR (EP3C)
RFJ (EW10A)
9HY (DV6TED4)
9HJ (DV6DTEDM)
RHE (DW10CTED4)
8FS (EP3)
5FS (EP6C)
5FS (EP6C M)
9HV (DV6TED4B)
9HX (DV6ATED4)
9HZ (DV6TED4)
RHR (DW10CB)

Brake disc technical drawing

A B C
Vehicle position Brake Disc Type Brake System Outer diameter Height Brake Disc Thickness
Rear Axle Solid LUCAS 249 mm 74,5 mm 9,0 mm
D E F F(x) G
Centering Diameter Bolt Hole Circle ? Bore ? Number of Holes Inner diameter
67mm 110mm 12mm 4 130mm
